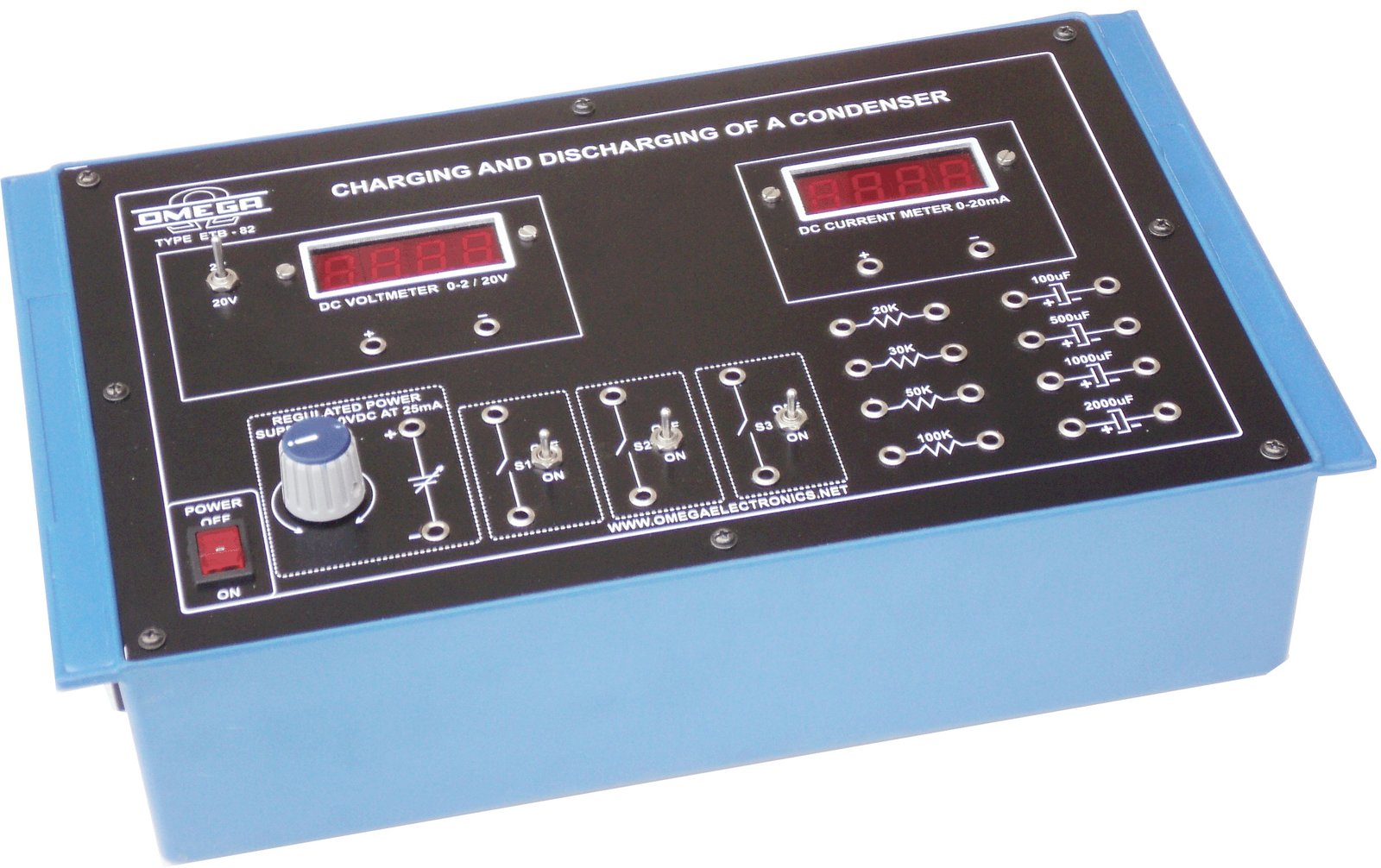

ETB-82
Charging and Discharging of a Condenser with power supply and 2 multi range meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To study the charging of a condenser, to plot a graph of voltage (V) across it against time (t) and to determine the time constant from this graph.
02 To plot a graph of charging current (i) against time (t) and to determine the time constant from this graph.
03 To study the discharging of a condenser, to plot a graph of voltage (V) across the condenser against time (t) and to determine the time constant from this graph.
04 To plot a graph of discharge current: (i) against time (t) and to determine the time constant from this graph.
05 To study the variation of charge and current in RC circuits for different time constants (using DC source.)
06 Electric Board Study of Rc Circuit With Ac Sinusoidal Wave.
07 Electric Board Study of Rc Circuit With Non Sinusoidal Wave.
