ES-226
Determination of the value of horizontal component of earth's field (Bh) using tangent galvanometer and an ammeter
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT :-
01 To determine the value of Horizontal Component of Earth’s magnetic field by using Tangent Galvanometer and an Ammeter.
Technical Specification
FEATURES

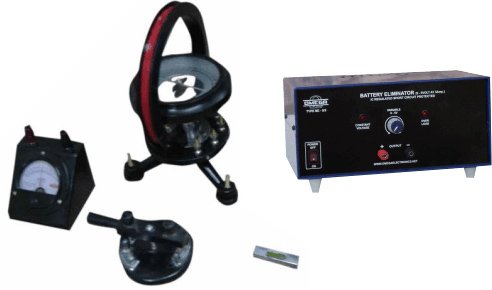

The Set up consists of the following :
01 Tangent Galvanometer : having bakelite ring of 6" dia with three windings of 2, 50 and 500 turns, Compass box and the ring both can be rotated independently of the base which is fitted with levelling screws OMEGA TYPE TG-192.
02 Battery Eliminator, 0-5V D.C. at 3A, continuously variable regulated and short circuit protected OMEGA TYPE BE-5/3.
03 D.C. Ammeter, 65mm round dial, mounted on bakelite stand, to read 0-3A OMEGA TYPE MO-65.
04 Reversing Key.
05 Spirit level.
01 To determine the value of Horizontal Component of Earth’s magnetic field by using Tangent Galvanometer and an Ammeter.
