ES-307
Determination of Y by bending of a beam using Koenig's method (C.R.)
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT :-
To determine Young’s modules (Y) by bending of a beam using Koenig’s method.
Technical Specification
FEATURES :-

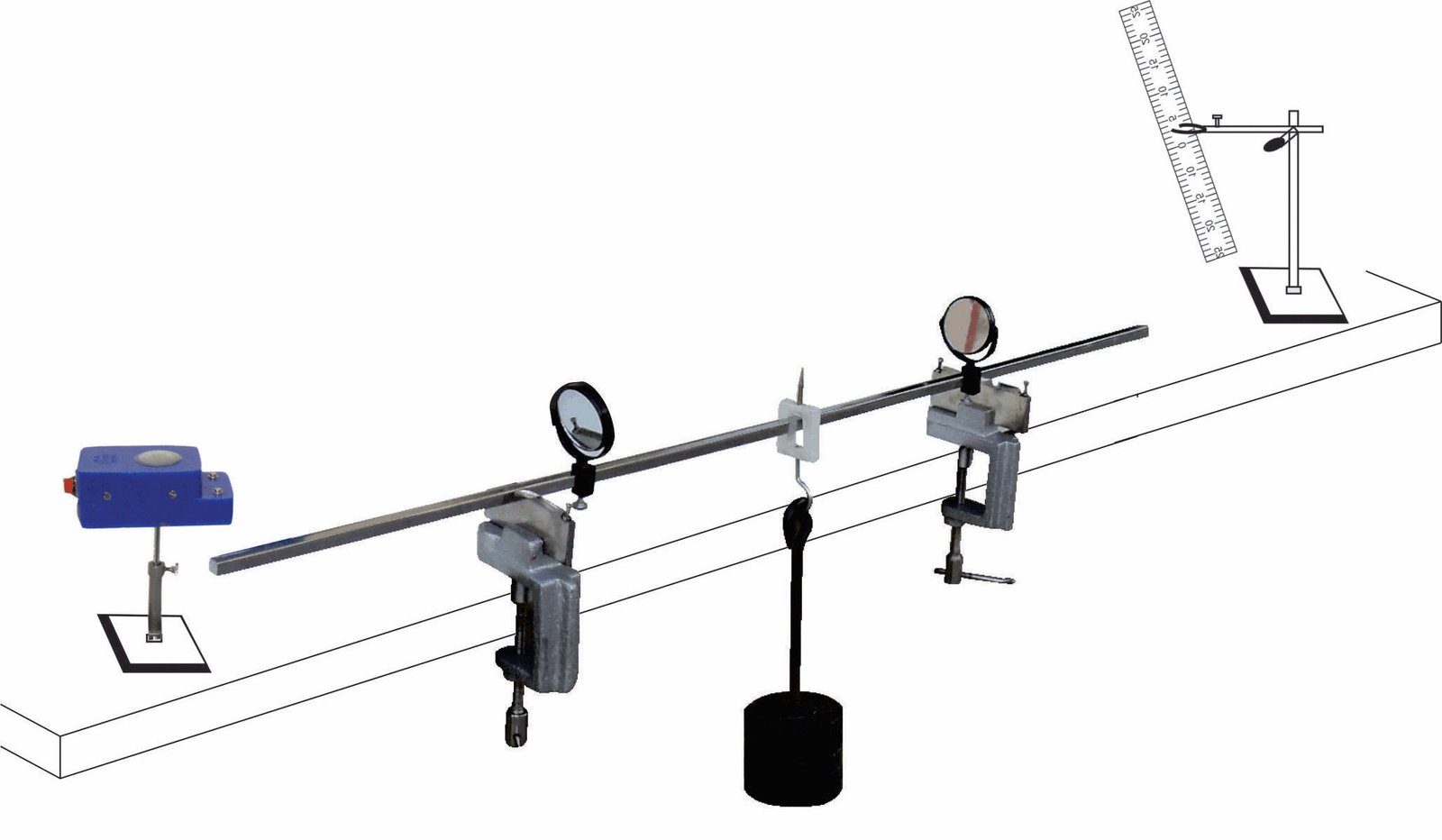

The complete Experimental Set-up consists of the followings :
01 Bending of Bar Apparatus : It consists of a brass beam 1 cm square and 1 metre long supported horizontally on two knife edges fixed sturdy
cast iron table clamps. It carries a hanger at its mid point for loading. Two tilting and adjustable plane mirrors are attached almost normally to
the beam near its ends facing each other. Without weights.
02 Diode Laser with Power Supply. Maximum output : 0.5 mW Wave length : 670 nm visible red Power supply : Included with ON/OFF switch
working on 230VAC.
03 Two stands : One for Diode Laser and other for translucent scale
04 Translucent scale : 50cm.
05 Slotted weights : With hanger 0.5kg sets of five including hanger.
