ETB-270

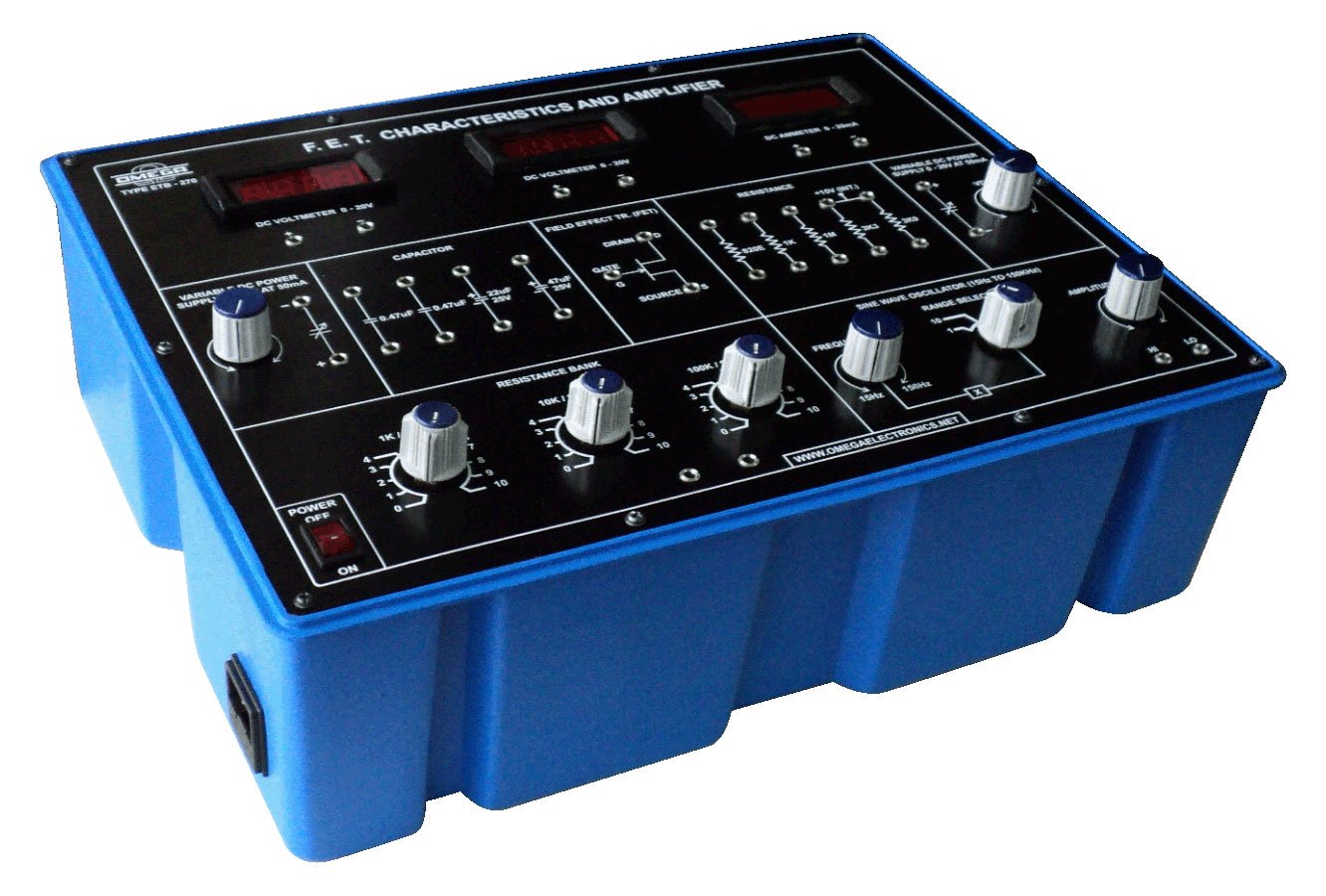

F.E.T. Characteristics & Amplifier
Experimental Training Boards (ETB Series)
Technical Specification
To study the characteristics of Field Effect Transistor.
01 Measurement of IDSS
02 Plot the static drain characteristics of FET
2.1 Drain Current V/s Drain Voltage Characteristics for different fixed values of VGS
2.2 Drain Current V/s Gate Bias Characteristics for different fixed values of VDS
03 Show that FET work as VVR (voltage variable resistance).
04 To design and calculate the finite gain of FET Amplifier.
05 To draw the overload characteristics of FET.
06 To draw the frequency response of FET.
07 To measure the input impedance of FET.
08 To measure the output impedance of FET.
09 Calculate the FET parameters (drain dynamic resistance rd, mutual conductance gm,
and amplification factor m) at a given operating point.
