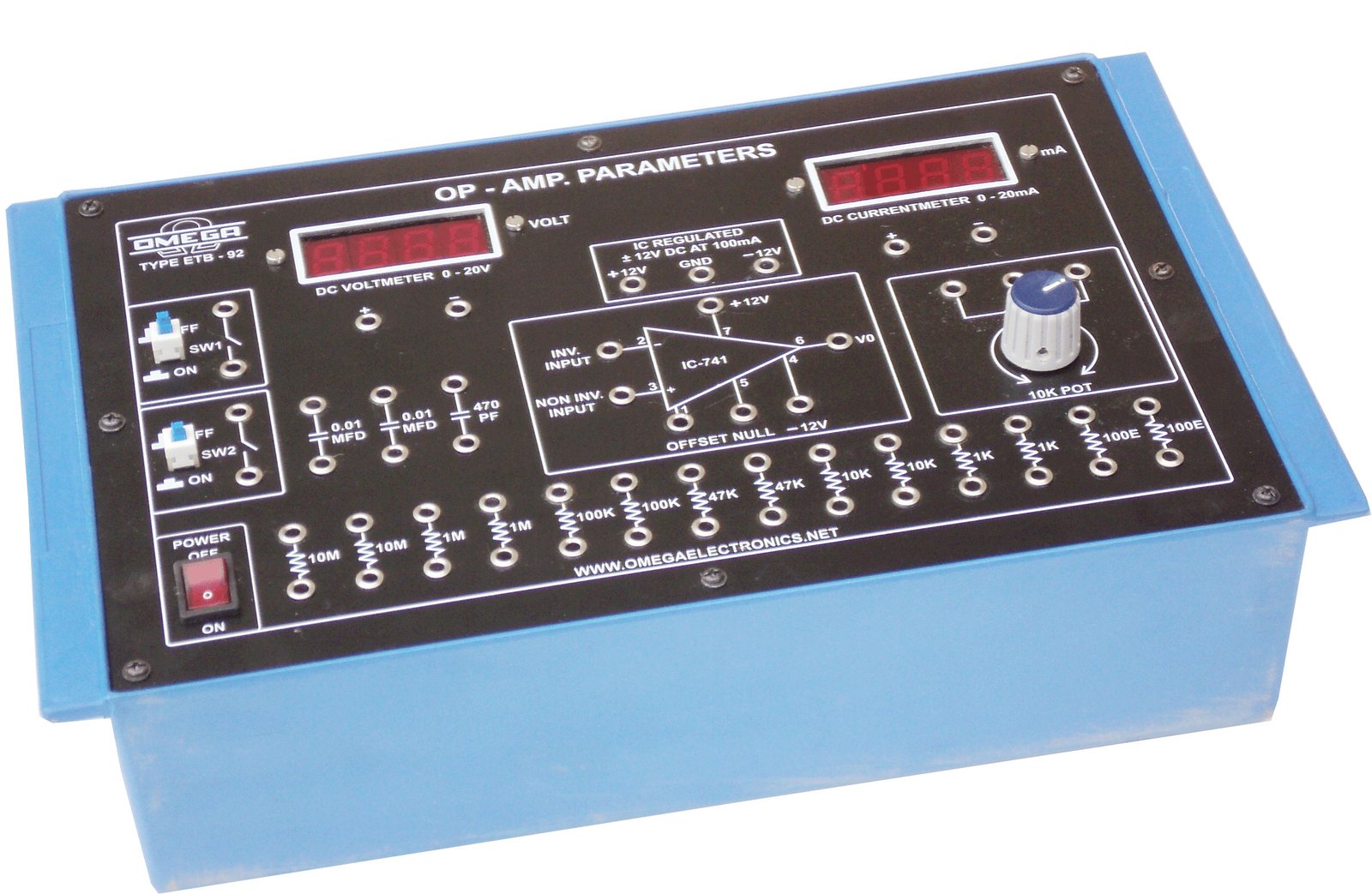

ETB-92
OP-AMP Parameters with power supply and 1dual range meters
Experimental Training Boards (ETB Series)
Technical Specification
To measure the following parameters on OP-AMP IC 741
01 Measurement of quiescent supply current of OP-AMP.
02 To null the offset voltage of an OP-AMP.
03 To measure open loop voltage gain under closed loop condition.
04 To measure output resistance.
05 To measure differential input resistance.
06 To measure unity gain bandwidth.
07 To measure the rated output.
08 To measure the slewing rate.
09 To measure the full power response.
10 To measure the input offset voltage.
11 To measure the input bias currents and offset current.
12 To measure the common mode rejection ratio (CMRR).
13 To measure the common mode input resistance.
