PET-458

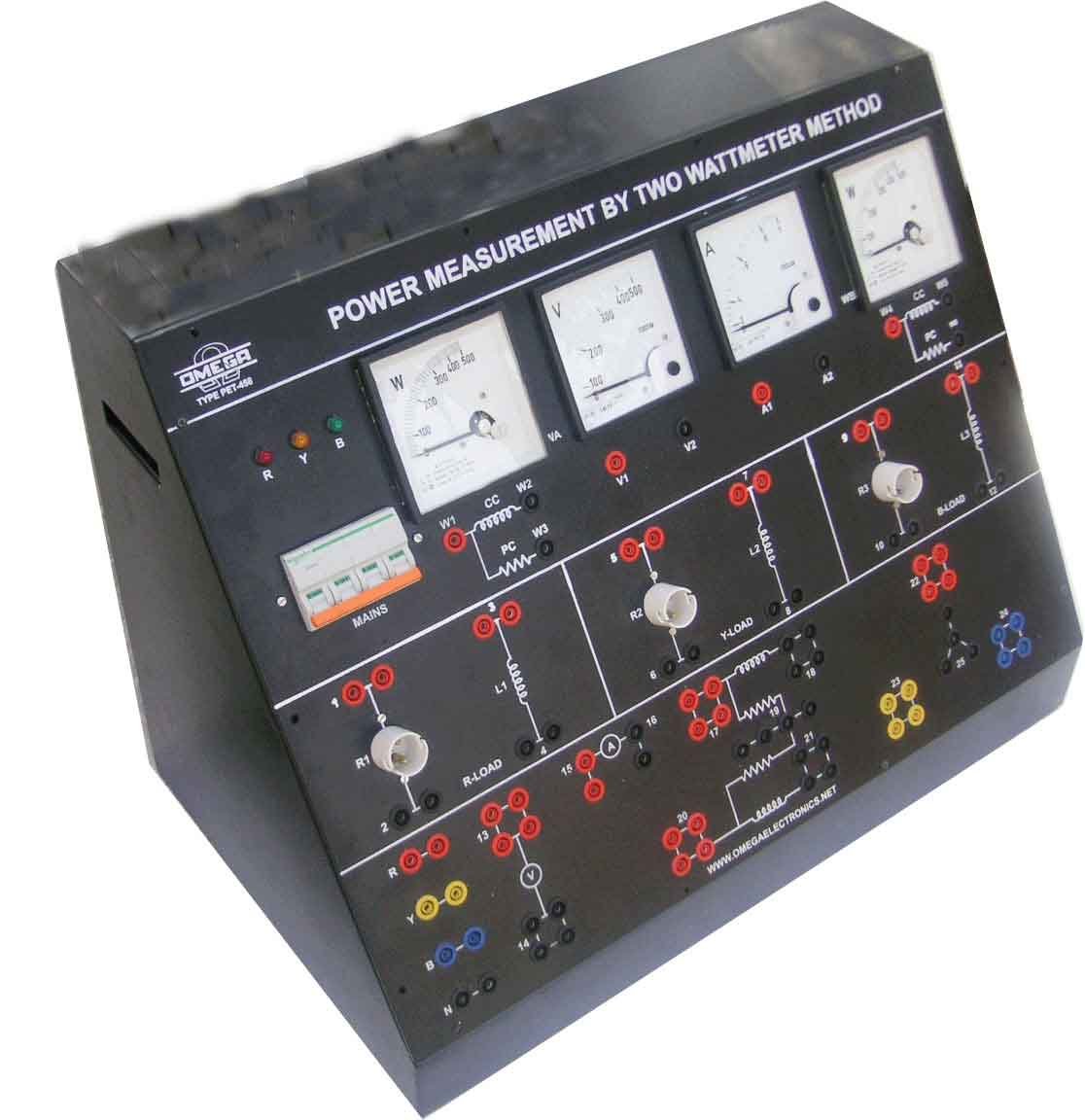

Power Measurement by Two Wattmeter Method
Power Electronics Training Boards (PET Series)
About a Product
OBJECTS :-
01 Study of three phase circuit parameters
1.1 Arrangement for line parameters
1.2 Arrangement for phase parameters
02 Measurement of the power in a three phase AC circuit by two wattmeter method
Technical Specification
FEATURES :-
Exclusive and rugged designed panel
01 Designed by considering all the safety precautions
02 Stand alone operation
03 High quality meters
04 Diagrammatic representation for the ease of connections
TECHNICAL SPECIFICATIONS :-
01 Mains Supply : 415 V ±10%, 50 Hz
02 Voltmeter : 0 - 500 V
02 Ammeter : 1 Amp.
03 Digital Wattmeter (WA) : 1250W
04 Digital Wattmeter (WB) : 1250W
05 Bulb : 100 W (Three)
06 Inductor Coil : 0.8 H (Three)
07 MCB : 10 A
