ES-357
Study of the Variation of Magnetic Field at the Centre of Circular Coils When Radius Remains Constant and Turns Vary
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT :-
01 To study the variation of magnetic field at the center of circular coils when radius remain constant and turns vary.
Technical Specification
FEATURES :-

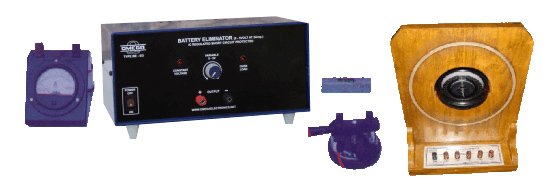

The Complete Experimental Set up consists of the following :
01 OMEGA TYPE TG-193 : An apparatus for variation of magnetic field at center of coils when radius remains constant and turns vary.
The number of turns are 20, 40, 60, 80 & 150 fitted with compass box. Compass box is Pye Type with bakelite case, metal dial, anti parallex
mirror and with aluminum pointer fitted with jewel.
02 Battery Eliminator, 0-5V D.C. at 3A, continuously variable regulated and short circuit protected OMEGA TYPE BE-5/3.
03 D.C. Ammeter, 65mm round dial, mounted on bakelite stand, to read 0 - 3A OMEGA TYPE MO-65.
04 Reversing Key.
05 Spirit level.
