ES-223
Verification of laws of resistance in series and parallel combination using a meter bridge (C.R.)
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT:-
01 To verify laws of resistance in series and parallel combination using a Meter Bridge.
Technical Specification
FEATURES :-

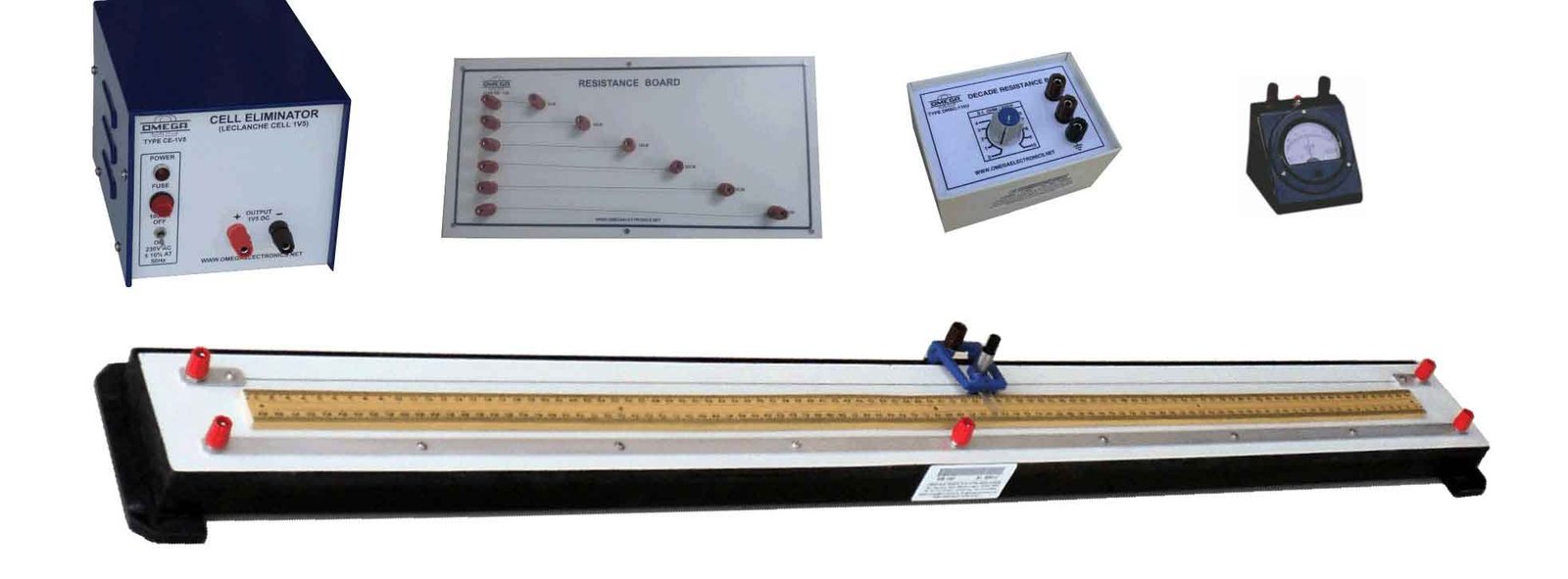

The Set up consists of the following :
01 Meter Bridge, two gaps, Sunmica top with sliding jockey OMEGA TYPE MB-165.
02 Galvanometer 30-0-30 ,65 mm round dial with push button controlled shunt, mounted on bakelite stand OMEGA TYPE MO-65PB.
03 Cell Eliminator OMEGA TYPE CE-1V5 .
04 Set of resistance wires for series and parallel connection mounted on a board with terminals OMEGA TYPE RB-106.
05 Decade Resistance Box, One dial in step of 1 ohm, total resistance 10 ohms OMEGA TYPE DRBC-115P.
