ES-218
Verification of laws of resistance in series and parallel combination using ammeter and voltmeter (C.R.)
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT:-
01 To verify laws of resistance in series and parallel combination using Ammeter and Voltmeter.
Technical Specification
FEATURES :-

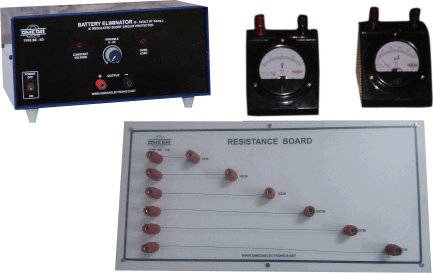

The Set up consists of the following :
01 0-5V D.C. at 3A, continuously variable regulated and short circuit protected Battery Eliminator OMEGA TYPE BE-5/3.
02 D.C. Voltmeter, 65mm round dial, mounted on bakelite stand, to read 0-3V OMEGA TYPE MO-65.
03 D.C. Ammeter, 65mm round dial, mounted on bakelite stand, to read 0-3A OMEGA TYPE MO-65.
04 Set of resistance wires for series and parallel connection, mounted on a panel board with terminals OMEGA TYPE RB-106.
