ES-209
Calibration of an ammeter with the help of a potentiometer (C.R.)
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT
01 To calibrate an Ammeter with the help of a Potentiometer.
Technical Specification
FEATURES

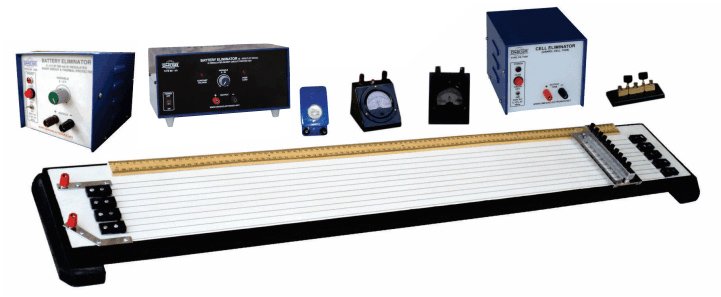

The Set up consists of the following :
01 Potentiometer : 10 Wires, fitted with pulleys on Laminated Board, Piano type jockey with
10 contact points OMEGA TYPE POT-185.
02 0-5V D.C. at 500mA, continuously variable regulated and short circuit protected Battery Eliminator OMEGA TYPE BE-5/05.
03 0-5V D.C. at 3A, continuously variable regulated and short circuit protected Battery Eliminator OMEGA TYPE BE-5/3.
04 Standard resistance 1 Ohm/10W OMEGA TYPE FR-105.
05 Galvanometer 30-0-30G (with push button controlled shunt) mounted on bakelite stand OMEGA TYPE MO-65PB.
06 D.C. Ammeter, 65mm round dial, mounted on bakelite stand, to read 0-3A OMEGA TYPE MO-65.
07 Daniel cell substitute Cell Eliminator OMEGA TYPE CE-1V08.
08 Two way key.
