DAL-1043

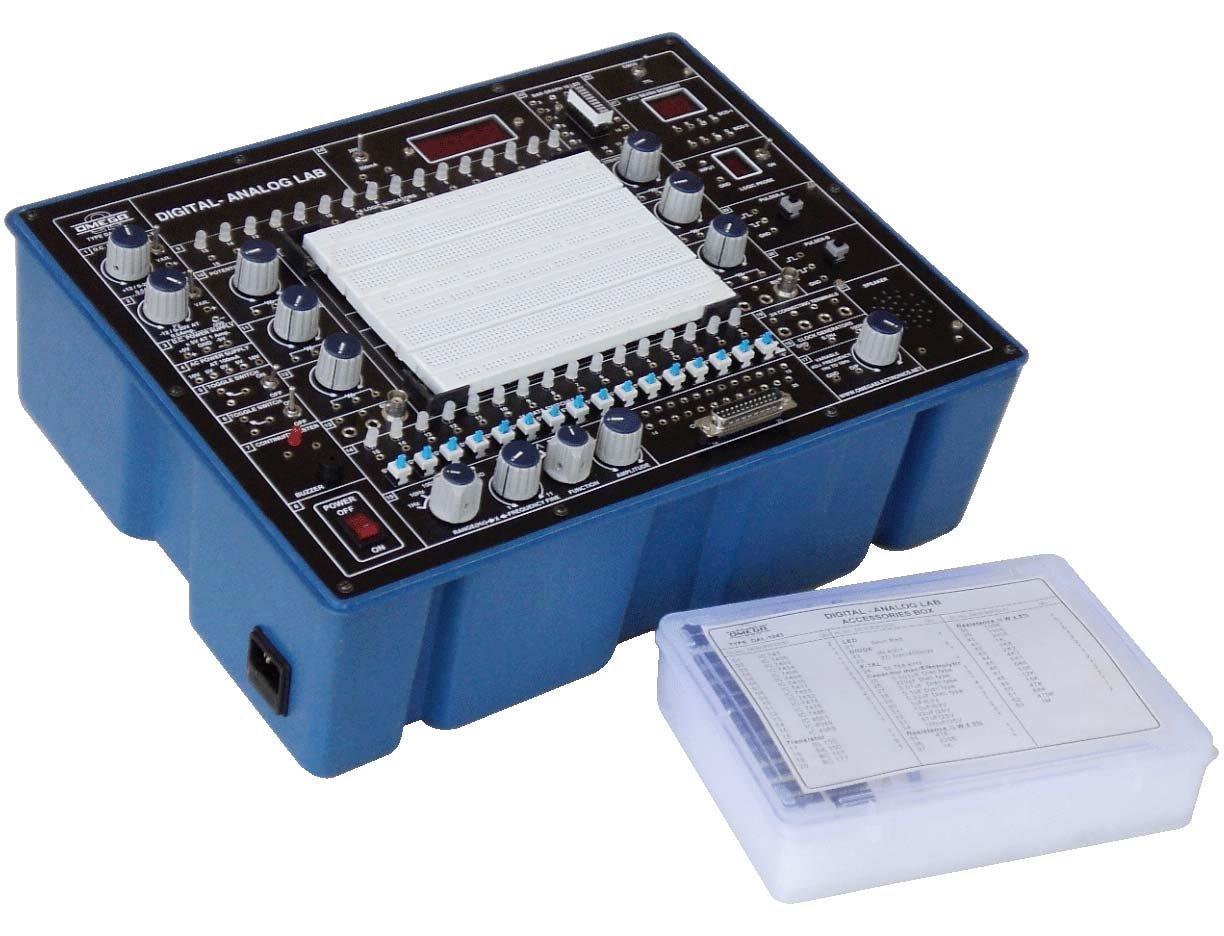

Digital - Analog Lab
Bread Board Trainers
About a Product
Optional Modules: Apart from above given experimental coverage of 16 20 experiments on breadboard, customers can purchase these optional modules. These are ready to use modules with wired components & circuit schematic drawn on top compatible to use with Digital-Analog Lab.
Analog Modules
01 Study of Diodes in DC circuits
02 Study of Light Emitting Diodes in DC Circuits
03 Study of Half wave rectifier
04 Study of Full wave rectifier
05 Study of Zener Diode as a voltage regulator
06 Study of transistor series voltage regulator
07 Study of transistor shunt voltage regulator
08 Study of Low pass filter
09 Study of High pass filter
10 Study of band pass filter
11 Study of CE configuration of NPN transistor
12 Study of CB configuration of NPN transistor
13 Study of CE amplifier
14 Study of Monostable multivibrator using transistor
15 Study of Bistable multivibrator using transistor
16 Study of Astable multivibrator using transistor
Digital Modules
01 Logic gates operation
02 To verify De-morgan’s theorem With boolean logic equations
03 Binary to Gray code conversion
04 Gray code to Binary conversion
05 Binary to Excess-3 code conversion
06 Binary Addition and Subtractor
07 Binary Multiplier
08 EX-OR gate implementation
09 Application of EX-OR gate
10 Johnson Counter
11 To verify the dual nature of Logic Gates
12 Study of Flip-Flops RS, JK, D&T
13 Multiplexer and Demultiplexer
14 4 Bit Binary up and down counter
15 Study of 8 to 3 Line Encoder
16 Study of 3 to 8 Line Decoder
17 Study of Shift Register (SIPO)
18 CMOS-TTL Interfacing
19 Study of Crystal oscillator
20 Study of pulse stretcher circuit
