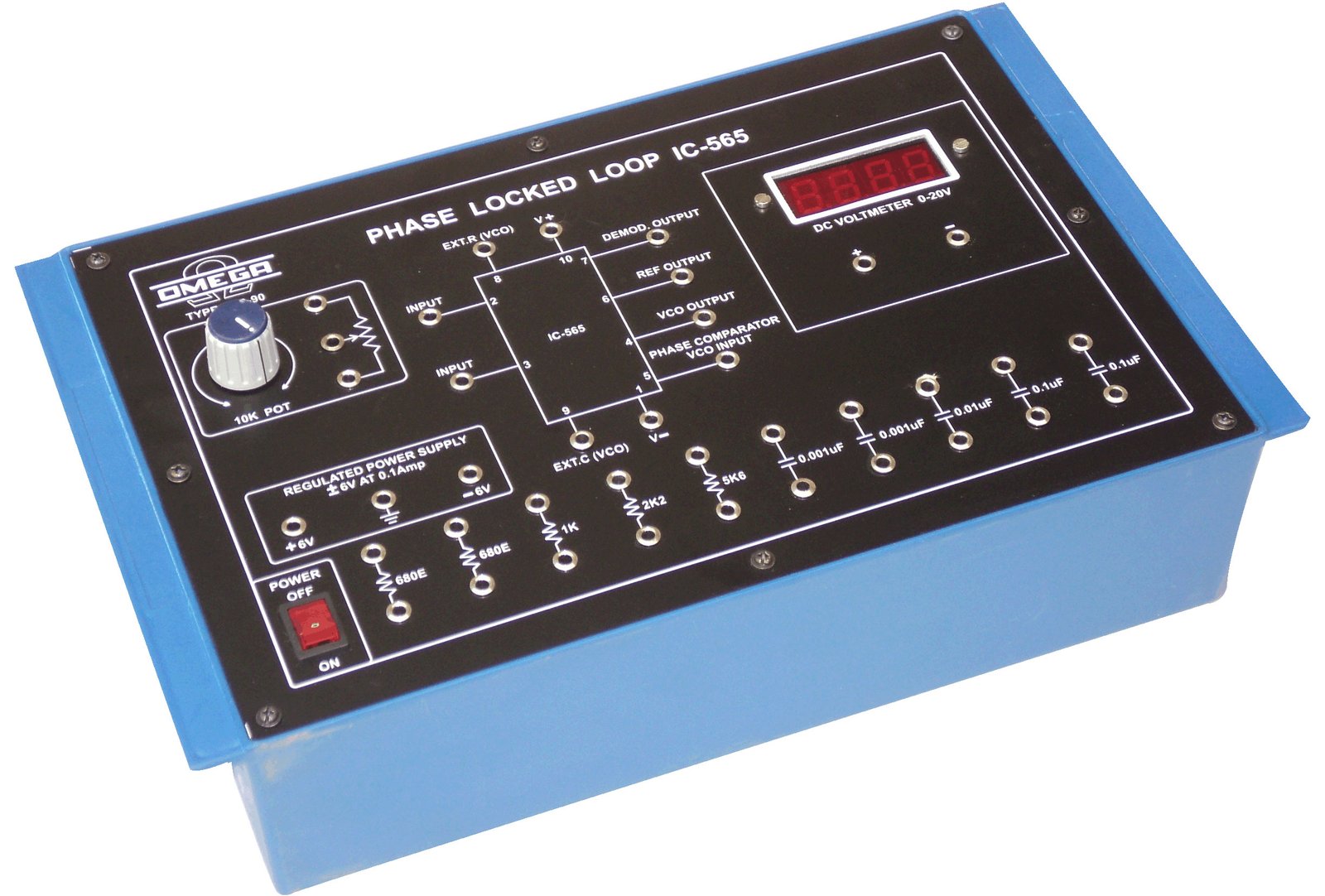

ETB-90
Phase Locked Loop IC 565 with power supply and 1 meters
Experimental Training Boards (ETB Series)
Technical Specification
To measure important parameters of Phase Locked Loop (PLL) IC 565 :
01 VCO Characteristics
1.1 To study and measure the free running frequency or centre frequency of VCO.
1.2 To study the VCO sensitivity
1.3 To study the VCO linearity
02 PLL Characteristics
2.1 To study and measure the capture range and lock range.
03 PLL Applications
3.1 Frequency synthesis
3.2 F.M. De-modulation
3.3 A.M. De-modulation
