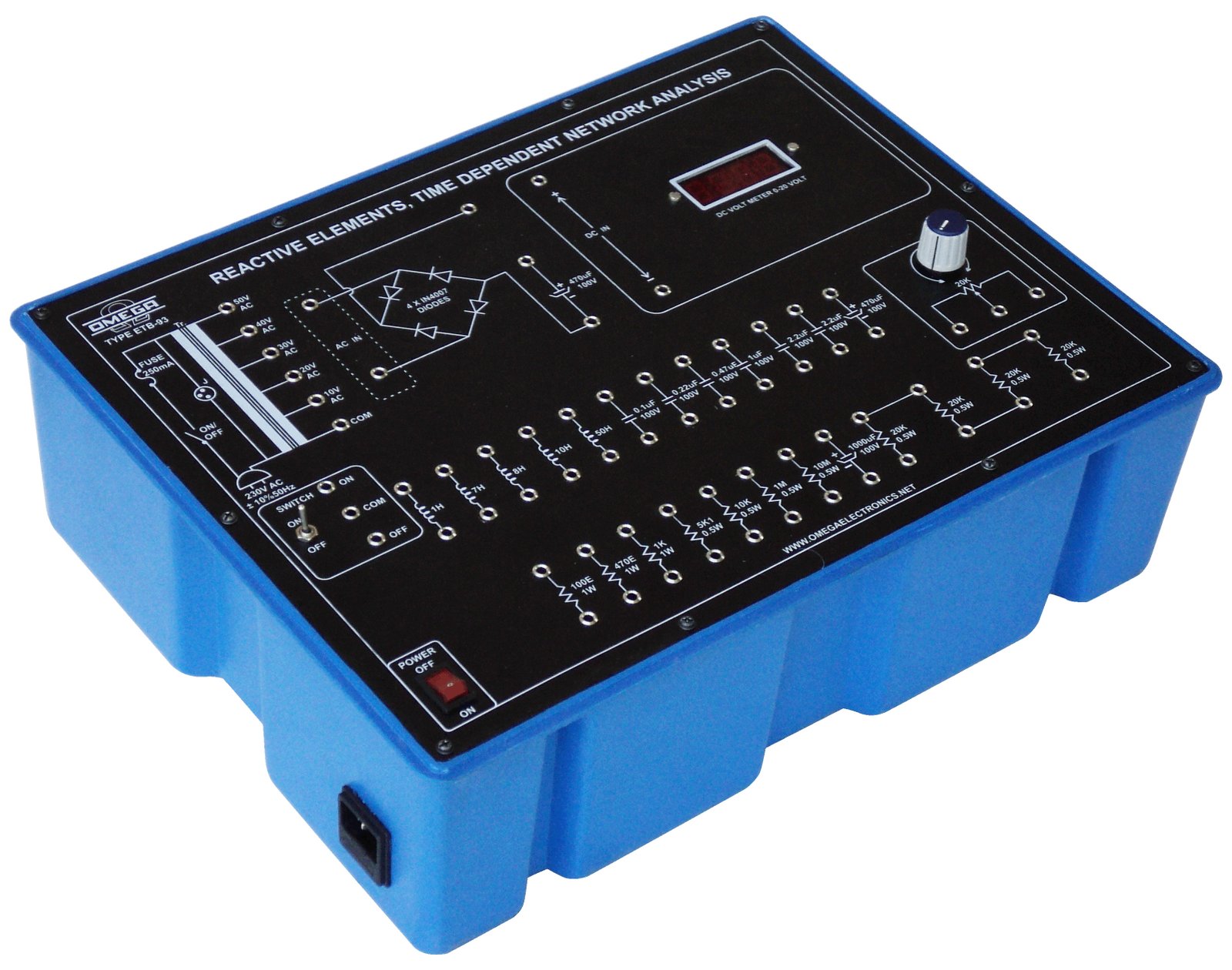

ETB-93
Reactive Elements & Time Dependent Network Analysis with power supply and 1 multi range meters
Experimental Training Boards (ETB Series)
Technical Specification
01 To study Charging & Discharging of a Condenser.
02 To Calibrate D.C. meter for A.C. voltage measurements.
03 To construct the vector (phaser) diagram for series L-R circuit and to calculate the power factor and "Q" at 50 Hz.
04 To study series LCR resonance circuit and its "Q".
05 To study series L-C resonance circuit and from it to find out the true value of "L".
06 To study series C-R circuit.
07 To study different types of filters.
08 To study the parallel R-C resonance circuit.
09 To study the parallel L-C resonance circuit and to find its "Q".
10 To verify circuit laws.
11 To find out the impedance and reactance of LCR reactive elements and to plot their reactance curves.
12 To plot "LISSAGOUS" figures.
