ES-366
Reduction Factor of a Tangent Galvanometer using copper voltmeter (C.R.)
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT :-
01 To determine reduction factor of a Tangent Galvanometer by using copper voltameter.
Technical Specification
FEATURES :-

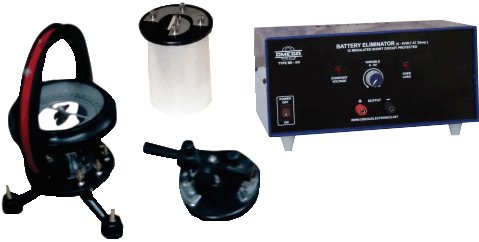

The Complete Experimental Set up consists of the following :
01 Copper Voltameter.
02 Tangent Galvanometer: having bakelite ring of 6" dia with three windings of 2, 50 and 500 turns, Compass box and the ring both can be
rotated independently of the base which is fitted with levelling screws OMEGA TYPE TG-192.
03 Battery Eliminator : 0-5V D.C. at 3A, continuously variable regulated and short circuit protected OMEGA TYPE BE-5/3.
04 Reversing Key.
05 Sprit level.
06 Adequate no. of connecting wires, 100cm long.
