ES-217
Relationship between the resistance and length of wire using voltmeter and ammeter
Physics Laboratory Experimental Set-Ups (ES Series)
About a Product
OBJECT
01 To establish the relationship between the resistance and length of the wire using Voltmeter and Ammeter.
Technical Specification
FEATURES

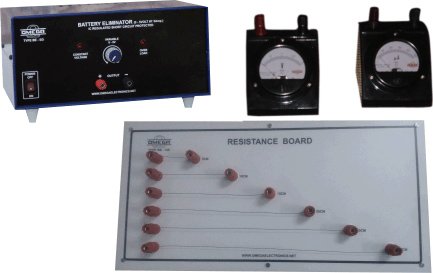

The Set up consists of the following :
01 0-5V D.C. at 3A, continuously variable regulated and short circuit protected Battery Eliminator OMEGA TYPE BE-5/3.
02 D.C. Voltmeter, 65mm round dial, mounted on bakelite stand to read 0-3V OMEGA TYPE MO-65.
03 D.C. Ammeter, 65mm round dial, mounted on bakelite stand to read 0-3A OMEGA TYPE MO-65.
04 Set of resistance wires, mounted on a panel board with terminals OMEGA TYPE RB-106.
05 One no. plastic scale of 12"
