ETB-87

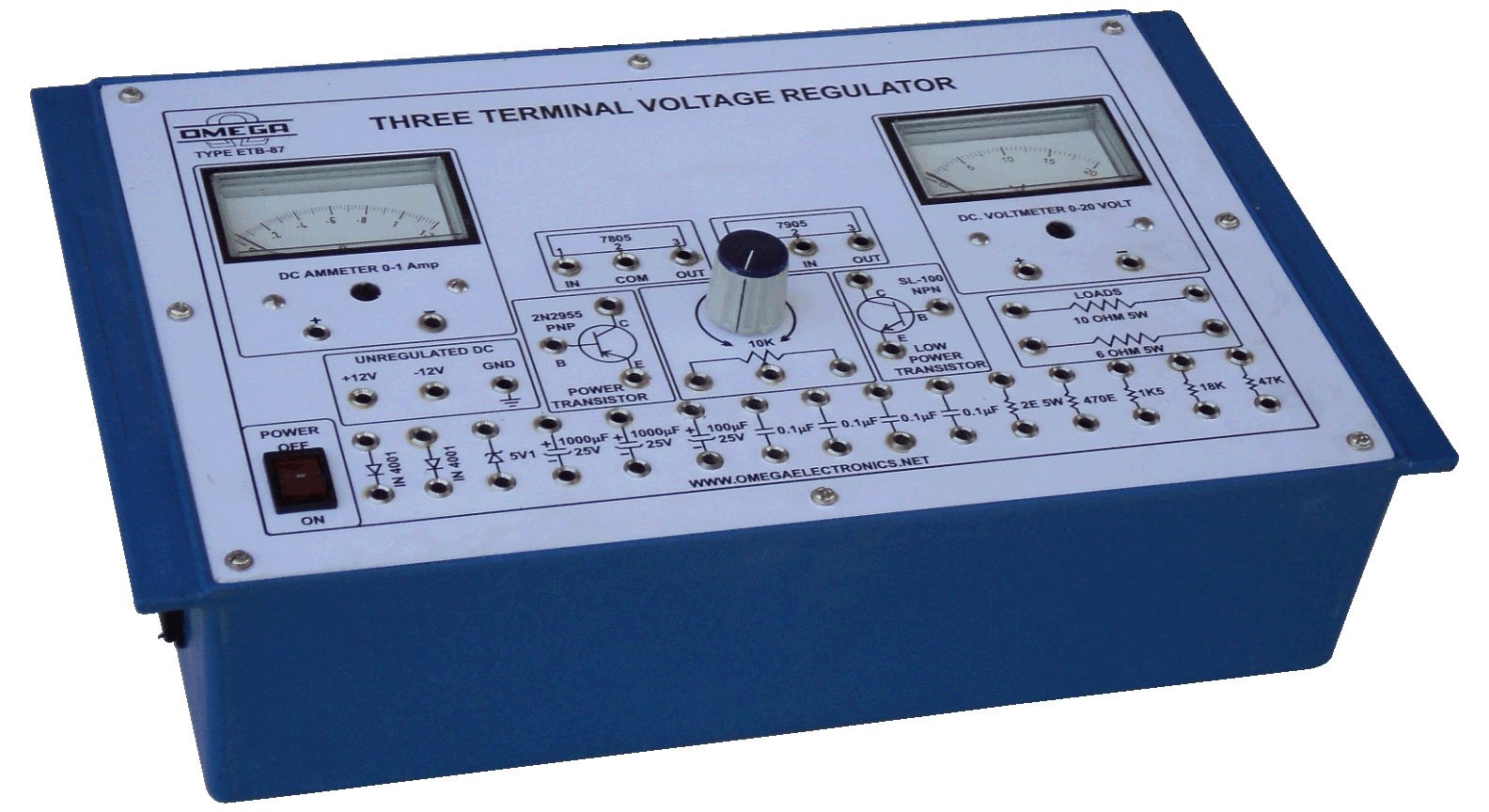

Three Terminal Voltage Regulator with power supply and 2 meters (C.R.)
Experimental Training Boards (ETB Series)
Technical Specification
01 To study the effect of capacitors at input and output of the regulator.
02 To study the effect of ground reference level on the output voltage.
03 To study the minimum voltage differential required for proper working of regulator.
04 To measure load regulation.
05 To study various ways to increase the output voltage.
06 To use as a continuously variable regulator.
07 To use additional power transistor for increasing the current capacity of the regulator.
08 To use two regulators for dual polarity output.
